High Temperature Resistant Graphite Coated Glass Cloth Abrasion Resistant Cloth For Welding Curtains & Covers

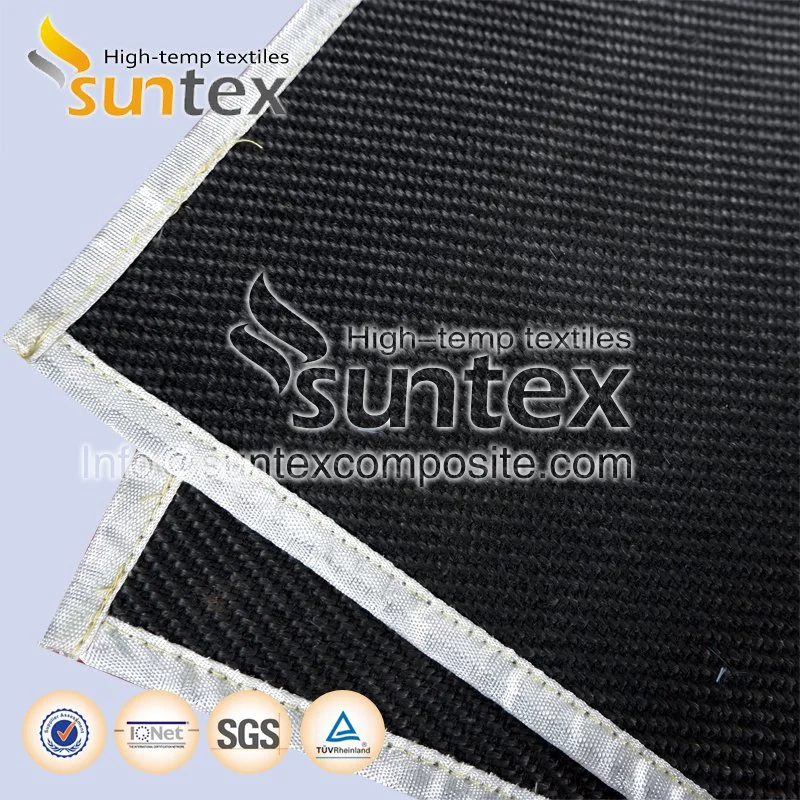

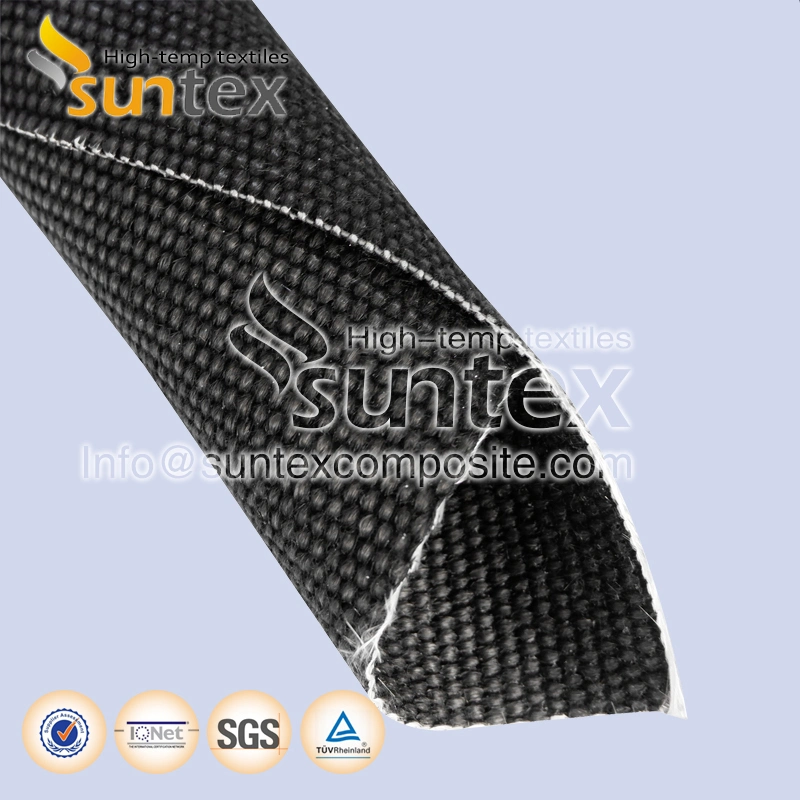

Suntex Graphite coated glass cloth is constructed with a glass fiber fabric which is coated on both sides with a special graphite solution. The graphite coating will increase the fabric's resistance to temperature and abrasion. It is commonly used in the manufacture of welding curtains, welding covers, heat shields, sleeves, connectors, and insulation jackets.
The continuous temperature up to 700C, Short burst up to 750C.
COATED FABRIC | Coating style No. GP235 | |||
Coating | Graphite both sides | |||
Weight | 1100 ± 50 g/m2 | 32.3 ± 1.5 oz/yd2 | ASTM D3776-96 | |
Thickness | 1.5 ± 0.05 mm | 0.061 ±0.002 inch | ASTM D1777-96 | |
Color | Black |
| ||
Temp resistance | 7000C | 13000F |
| |
Applications samples:(welding blanket-fire/welding protection)
| coating | graphite and polyurethane |
| color | black |
| application1 | Removable insulation mattress, jackets & pads |
| application2 | Fire doors/smoke curtains |
| application3 | Welding blankets/curtains/covers, heat shields |
| application4 | Flexible expansion joints & compensators |
